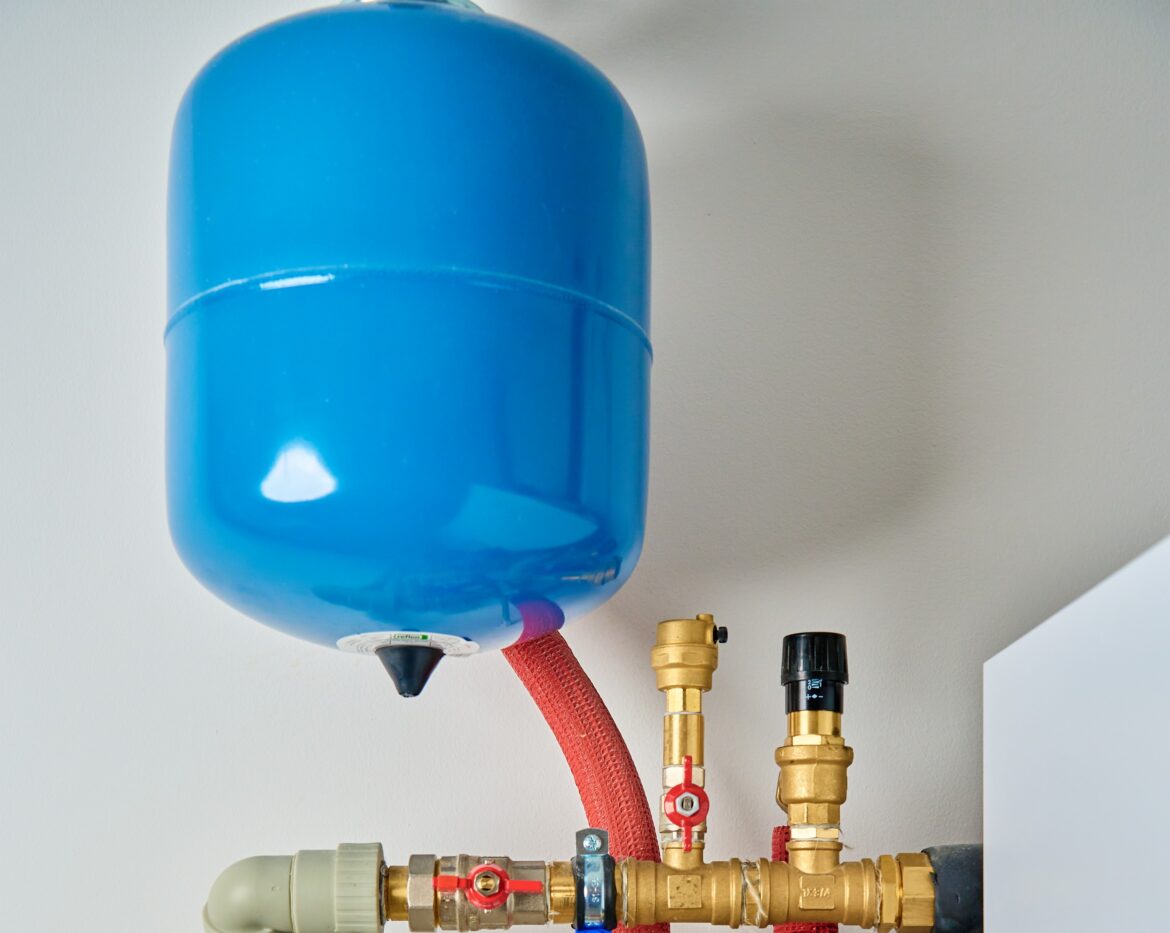

Expansion Tank Sizing for Dallas, TX Water Heaters

7/6/2026

Key Takeaways About Expansion Tank Sizing

Thermal expansion occurs when heated water increases in volume and raises pressure inside a closed plumbing system. This guide is for homeowners and property managers who need to prevent relief-valve discharge and pressure problems during hot-water use.

Identify heater gallon capacity and record the static inlet pressure.
Prevent T&P valve trips by matching tank acceptance to expansion.
Avoid short cycling by setting tank precharge equal to static pressure.
Spot symptoms like dripping valves banging pipes and wet tank bottoms.
Reduce sizing errors by testing hot-water pressure during a draw.
Plan inspections with a plumber to verify PRV check valve locations.

Introduction

Thermal expansion happens when water heats and needs more space inside a closed plumbing system. That extra volume raises pressure against the water heater and piping, causing noisy relief valves or dripping connections. An expansion tank gives the heated water somewhere to go and eases that pressure swing. Understanding proper Expansion Tank Sizing prevents repeated trips of the temperature and pressure relief valve and reduces stress on fittings.

Size matters because tanks come in different volumes and precharge pressures, and a mismatch leaves pressure problems unresolved. Homeowners often notice banging pipes, a running relief valve, or decreased heater life when the tank is wrong. Local pressure from the supply side changes how much expansion will push back into the system. In Dallas, TX supply pressure can influence the tank size you actually need.

Pressure-reducing valves, or PRVs, change the equation by lowering incoming pressure and creating a stable baseline for the expansion tank to work against. When a PRV is present, the required tank volume usually falls because less head pressure resists the expanding water. A check valve or backflow preventer can create a closed system that makes an expansion tank essential. Proper integration between PRV, check valve, and expansion tank keeps steady household water pressure and protects the heater.

Symptoms like slow leaks at the relief valve, hissing sounds near fittings, or visible tank corrosion point to diagnostics a professional would run. A plumber will record static and hot-water pressure with a pressure gauge and check the tank precharge with an air gauge. They will inspect the PRV, shutoff valve, and heater capacity plate to pick the right tank size. If you notice these signs in Rockwall, TX homes, contact a licensed plumber to confirm the cause and recommend the correct expansion tank and setup.

What Thermal Expansion Is And How It Works

Thermal expansion is the increase in water volume as its temperature rises inside a closed plumbing system.

When water heats, its molecules move faster and need more room, so pressure in pipes rises quickly. Homeowners often ask if expansion alone can trigger a water heater relief valve; the answer is yes when pressure exceeds set limits. A visible symptom to watch for is a dripping T&P valve after hot-water use, which suggests trapped expansion. A plumber can confirm this with a pressure gauge and by checking the heater capacity plate information.

It occurs whenever water is heated in a closed system.
Higher incoming pressure makes expansion effects worse.
A PRV lowers inlet pressure and changes required tank size.
Check valves create closed systems that need an expansion tank.
Tanks have an air bladder to accept excess water volume.

Expansion tanks work by using an air bladder that compresses as hot water flows into the tank space. That compressed air absorbs extra volume and keeps pressure from spiking in the heater and fittings. A common homeowner question asks how a tank prevents noisy pipes; the tank reduces pressure swings that cause pipe movement and hammer. Technicians verify tank function by measuring precharge with an air gauge and comparing it to house static pressure.

Not every tank size fits every heater because both the water heater capacity and inlet pressure determine how much extra volume appears. Professionals calculate the needed tank volume using the heater gallon rating and measured static pressure, then match it to tank specifications. For homeowners in Dallas, TX this step avoids repeated T&P trips and reduces stress on joints. For Rockwall, TX properties, ensuring the tank precharge matches household pressure helps keep valve leaks from recurring.

If you want more detail on tank types and installations, see our page about expansion tanks for water heater options and compatibility. A qualified plumber will inspect the PRV, check valve, heater tag, and tank precharge before recommending a specific tank. Always contact a licensed professional for installation to avoid safety risks and to ensure compliance with local plumbing practice.

Why Thermal Expansion Happens In Water Heaters

Water expands when heated, but in water heaters the expansion concentrates where the tank and nearby piping resist movement. That resistance comes from closed valves, backflow preventers, or a PRV on the inlet side. When the system cannot relieve the added volume back into the supply, pressure rises inside the heater and the connected piping. This local pressure increase stresses fittings and can force the temperature-and-pressure relief valve to relieve.

Mineral deposits and scale on the interior of the heater reduce the effective volume available for water, which increases pressure rise during heating. A water heater with significant scale needs less added volume to reach relief pressure than a clean tank. Technicians inspect the tank dip tube, anode condition, and visible corrosion to assess how deposits may change expansion behavior. These physical signs help decide whether a larger expansion tank is necessary to compensate for reduced internal capacity.

Pipe layout and the presence of check valves or a PRV change how expansion transmits through the system and where pressure concentrates. If a PRV is installed, the system becomes isolated from supply-side pressure variation and requires the expansion tank to carry more of the load. Plumbers measure static inlet pressure with a pressure gauge at the main shutoff and test hot-water pressure during heating to confirm how much the system actually rises. Those recorded readings guide the proper Expansion Tank Sizing decision.

Thermal expansion also shows up as intermittent noises, small relief-valve leaks after hot-water draws, or cyclical pressure at fixtures during heavy use. For a thorough diagnosis, a professional will check the heater nameplate for gallon capacity, verify inlet pressure, and measure the tank precharge with an air gauge. For homeowners in Dallas, TX or properties in Rockwall, TX, keeping these inspection steps in mind helps prevent repeated T&P trips. For more detailed guidance technicians use resources like this water heater expansion tanks guide when confirming recommendations.

How To Calculate Expansion Tank Sizing Needs

Start by recording the water heater’s gallon capacity from the nameplate and noting the thermostat setting used most often. Measure the static cold inlet pressure at the main shutoff using a pressure gauge to establish baseline head. Next, run a hot-water draw while monitoring pressure to estimate the pressure rise caused by thermal expansion. These three readings form the basic inputs professionals use for Expansion Tank Sizing calculations.

Calculate the expanded water volume using published thermal expansion percentages for the temperature rise you expect inside the heater. A technician converts that percent into gallons by multiplying it by the heater capacity to get the expansion volume. Then compare the required water acceptance to manufacturer curves or tables to select a tank that can handle the volume at your measured pressure. This step prevents picking a tank too small to absorb the added gallons.

Adjust the calculation if a PRV, check valve, or backflow preventer creates a closed system by adding the measured static pressure to the precharge target. Plumbers set the tank precharge roughly equal to the household static pressure so the bladder accepts water smoothly without short-cycling. They confirm correct sizing by measuring tank precharge with an air gauge and checking system pressure with the hot water flowing. For homeowners in Dallas, TX this testing avoids repeated trips of the T&P valve and unnecessary repairs.

When mineral scale reduces effective heater volume, professionals increase the required tank capacity to compensate for the smaller usable water space. A plumber will inspect the heater interior, dip tube condition, and any visible scaling before finalizing tank size decisions. For Rockwall, TX properties a clear written report of the measured static pressure, expansion volume, and chosen tank model helps homeowners keep records. If you prefer detailed guidance, see our page on expansion tank essentials for steps a technician follows during sizing and verification.

Sizing By Water Heater Capacity And Pressure

Match tank acceptance volume to the calculated expansion gallons at your measured static pressure to pick the right model. Manufacturers provide acceptance curves that show how much water the tank accepts at different pressures, and you compare those to your expansion volume. A plumber reads the heater capacity plate and your pressure gauge to find the proper curve point. Bring those numbers when shopping or discussing options with a technician.

Check the heater gallon rating.
Record static inlet pressure.
Calculate expanded gallons.
Match to tank acceptance curve.
Verify precharge equals static pressure.

Higher incoming pressure reduces a tank’s usable acceptance at peak conditions, so choose a larger tank when static pressure is high. If a PRV lowers inlet pressure, the required tank acceptance typically drops and a smaller tank may suffice. Technicians account for any check valve or backflow preventer that isolates the system before final sizing. For homeowners in Dallas, TX this adjustment often changes the recommended model size.

When you have a large-capacity water heater, scale the expansion tank proportionally to the heater gallon rating rather than using rule-of-thumb sizes. For instance, tanks for 80–100 gallon heaters need noticeably more acceptance than those for 40–50 gallon units. A professional will list candidate tank models and their acceptance at your measured pressure before installation. In Rockwall, TX properties, that comparison helps avoid repeated relief-valve activity after hot-water draws.

Integrating Expansion Tank With Pressure Reducing Valves

When a PRV and expansion tank must work together, the tank’s precharge should match the PRV’s downstream set pressure to avoid short cycling. A technician will isolate the tank, measure air precharge with an air gauge, and adjust it to equal the measured static pressure after the PRV. If the precharge is too low the bladder will fill immediately and the tank accepts less water than expected. Proper precharge keeps the tank active only when hot-water expansion occurs.

Plumbers also watch for trapping devices like check valves that can create a closed zone between the PRV and the water heater. If a check valve exists between the PRV and house piping, the expansion tank needs placement on the heater side of that device to absorb heated volume. Installing the tank on the wrong side can leave the heater unprotected while pressurizing other fixtures. Technicians confirm valve locations before finalizing the connection.

To confirm integration, a professional records static pressure upstream and downstream of the PRV and then performs a hot-water draw while monitoring pressure changes at the heater. They use a pressure gauge and an air gauge on the tank to verify the bladder accepts expansion without raising system pressure above safe limits. Recorded readings and photos provide documented evidence of correct operation for homeowners. This diagnostic approach prevents guesswork and shows whether a different tank size is needed.

For properties in Dallas, TX or Rockwall, TX, adjusting the PRV or tank precharge may be required after seasonal pressure shifts or service changes. If homeowners notice recurring T&P valve activity or fluctuating fixture pressure, consult a plumber familiar with PRV and tank interaction. Learn about broader repair options and water heating services on our water-heater solutions page when planning a follow-up assessment. For low-pressure troubles linked to PRV settings, see guidance on what plumber to call if your home has low water pressure for next steps.

Warning Signs Homeowners Should Monitor Regularly

Watch for dripping or intermittent discharge from the temperature-and-pressure relief valve after hot-water use, which may indicate repeated thermal expansion events stressing the system. Also listen for brief hissing or air-like noises near fittings after the heater cycles, as trapped air moving into a failing bladder can cause those sounds. Visible rust or corrosion on the expansion tank surface or fittings suggests age or a leak that reduces tank effectiveness and needs evaluation. If you notice any of these signs, document when they happen and how long they persist to help a technician diagnose the issue.

Sudden or frequent pressure spikes felt as banging pipes during hot-water runs point to inadequate acceptance capacity in the expansion tank or improper precharge pressure. A homeowner can use a simple pressure gauge at a hose bib to observe pressure changes during a hot-water draw and record the readings for a professional. Persistent high static pressure when the system is idle can shorten tank life and should be measured upstream and downstream of any PRV. For specific pressure troubleshooting and solutions consult guidance on plumbing for water pressure.

Watch for the expansion tank becoming cold and wet at the bottom, which may mean a bladder rupture and loss of air cushion inside the tank. Reduced hot-water volume at fixtures after the heater runs can indicate internal scaling or a tank that cannot accept the expanded gallons, so note timing and fixture behavior. A sudden change in water temperature consistency sometimes accompanies pressure problems caused by mis-sized tanks. Share these observations with a plumber so they can prioritize tests during an inspection.

When a PRV has been adjusted or maintenance occurred, pay attention to any new relief-valve activity or pressure variation at fixtures, as the tank precharge may now be mismatched. In Rockwall, TX properties, seasonal shifts can bring changes in municipal pressure that reveal marginal tank sizing or precharge errors. A professional will perform diagnostic steps like measuring static pressure, performing a hot-water draw with a gauge, and checking tank precharge to confirm sizing or necessary adjustments. If you notice warning signs, schedule a plumber to avoid further damage and maintain safe operation.

When To Call A Professional For Expansion Tank Sizing

If you notice recurring relief-valve discharge after several hot-water uses, call a licensed plumber to diagnose the system. A technician will record static pressure, check the PRV setting, and measure tank precharge during an on-site inspection. They will also test hot-water pressure during a draw to observe how much the system pressure rises when the heater cycles. These measurements determine whether a different expansion tank size or PRV adjustment is necessary for safe operation.

A plumber measures static inlet pressure.
They test pressure during a hot-water draw.
They check tank precharge with an air gauge.
They inspect PRV and check valves for isolation issues.

Call sooner if you hear repeated banging or notice sudden temperature swings at fixtures during hot-water use, as these point to pressure instability. A professional will inspect piping layout and valve locations to confirm the expansion tank is placed correctly relative to any check valve or PRV. They may recommend replacing a failed bladder-style tank or upsizing when measured expansion exceeds tank acceptance. For further pressure context and solutions, review guidance about high water pressure prior to scheduling an inspection.

If your home recently had plumbing changes or a new PRV installed, schedule a verification visit to confirm the precharge matches downstream pressure. Technicians will provide a written report showing measured pressures, calculated expansion volume, and the recommended tank model for your system. Homeowners in Dallas, TX or Rockwall, TX should keep that documentation for future plumbing service or warranty issues. When safety risks or code questions arise, call a licensed plumber rather than attempting DIY adjustments to PRVs or tank precharge.

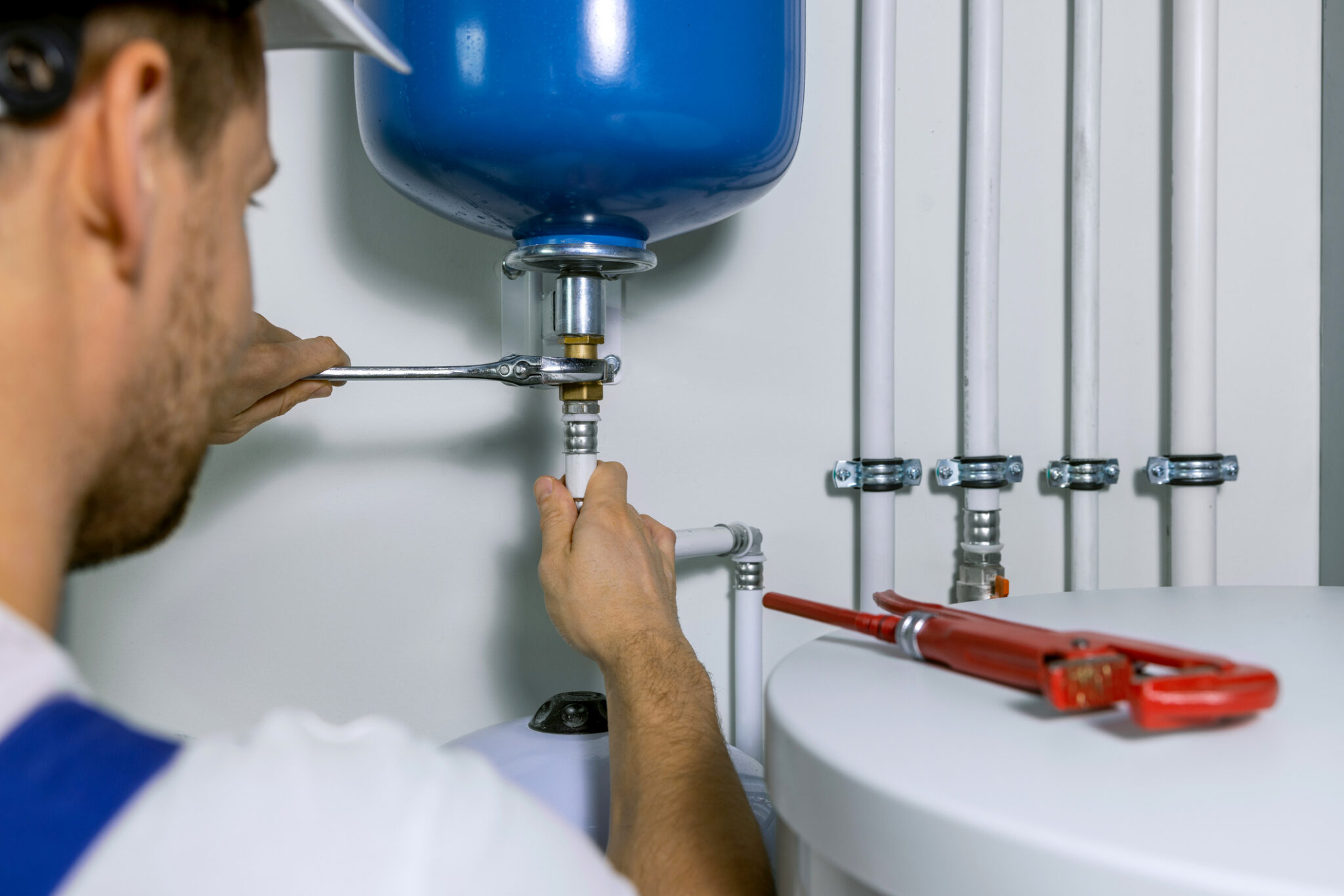

Preventive Maintenance And Practical Installation Tips

Schedule routine checks of the expansion tank air precharge every 6 to 12 months to catch slow leaks or pressure drift early. A technician uses an air gauge on the Schrader valve to confirm precharge equals measured downstream static pressure. If the precharge is low, adding air prevents the bladder from taking water and losing acceptance capacity during heating. Regular checks avoid sudden failure and reduce stress on the water heater and fittings.

When installing a replacement tank, mount it near the water heater with the inlet at the tank’s top for proper bladder performance and easier service access. Ensure the tank’s isolation valve and union are accessible so a plumber can remove the tank without draining the heater. Tighten connections to manufacturer torque recommendations to prevent leaks without crushing the bladder fitting. Label the tank with the precharge pressure and installation date for future reference.

After any PRV adjustment or seasonal pressure change, verify the tank precharge and system pressures during a hot-water draw to confirm the setup still balances correctly. A plumber will record upstream and downstream pressures and perform a hot draw while monitoring the tank acceptance with gauges. Keep those measurement records to compare future shifts and to decide if upsizing is necessary. Homeowners in Dallas, TX benefit from this step when municipal pressure variations occur.

Protect the tank and connected piping from freezing and corrosion by insulating exposed fittings and mounting the tank away from moisture sources. Corrosion at the inlet fitting often shows as white deposits or staining near connections, signaling the need for immediate inspection. If you own property in Rockwall, TX, include the expansion tank in seasonal maintenance checks alongside the water heater. When in doubt about installation details or observed symptoms, contact a licensed plumber for safe corrective work.

Frequently Asked Questions

How does thermal expansion affect my water heater pressure?

When water heats, it expands and raises pressure inside a closed plumbing system against the water heater tank and pipes. Elevated pressure can stress the heater, loosen fittings, and trigger the relief valve to discharge. Proper Expansion Tank Sizing reduces that pressure rise by absorbing extra hot-water volume and protecting system components. If you see frequent relief-valve discharge or loud hammering, stop use and call a licensed plumber for inspection and repair.

What steps do plumbers use for expansion tank sizing?

A plumber first records the water heater capacity, incoming static pressure, and PRV setting using a pressure gauge and the water heater label. They calculate thermal expansion volume from heater gallons and a published expansion table or chart for Expansion Tank Sizing. Next they select an expansion tank with adequate precharge and air volume, then adjust the tank precharge to match static pressure. If the system shows leaks, corrosion, or unsafe pressure spikes, stop work and recommend a licensed professional for repairs.

How does a PRV change Expansion Tank Sizing needs?

A pressure-reducing valve lowers the system static pressure and reduces the expansion tank volume required. With a PRV you size the tank using the PRV outlet pressure, not the municipal supply pressure. If a PRV creates a closed system by adding a check valve, thermal expansion increases and you must ensure the tank absorbs the extra volume. If you are unsure or see rapid pressure spikes, caution and contact a professional plumber for diagnosis and adjustment.

What signs show my expansion tank is too small?

Frequent relief valve discharge or water around the water heater indicates the tank may be too small to absorb thermal expansion. You might notice pressure fluctuations at fixtures, banging pipes, or hot-water cutouts when the heater runs. A pressure gauge on the cold inlet that spikes above your PRV or municipal pressure during heating suggests inadequate expansion capacity. If you see these signs, use caution around hot components and contact a licensed plumber to confirm Expansion Tank Sizing and replace or resize the tank.

How often should a pro check tank precharge and pressure?

Have a pro check the expansion tank precharge and system pressure at installation and during annual water heater service visits. If your home has a pressure-reducing valve, ask the technician to test tank pressure whenever the PRV is adjusted. Homes with frequent pressure swings, water hammer, or recent plumbing changes should get checks every six months. If you notice hissing, leaks, or no hot water recovery, stop using the heater and call a professional promptly for diagnosis and repair.
